Home / Products / Hybrid Devices

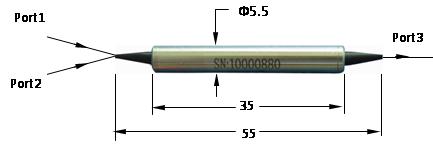

Product Name: Isolator Polarization Beam Combiner/Splitter(IPBC/IPBS)
Assembly isolator and PBC/PBS in one compact package. It can combiner two polarization states into one single mode fiber or split single mode into two vertical polarization states, with isolator, it can block backward light so that protect light source.

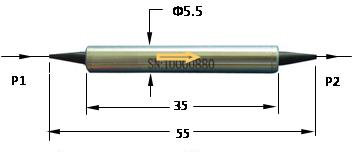

Product Name: Inline Faraday Rotator(ILFR 1310/1550/1064)

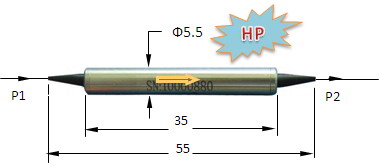

Product Name: High Power Isolator(HPISO 1310/1550nm 1-10W)
High Power Isolator(1310,1550)
Single stage, dual stage are both available, PM or non-PM are also optional.
Power handling can be 1W~10W on demand.

Product Name: High Power Inline Isolator(PM&Non-PM Series 1064nm)
It's usually used in fiber laser system to protect the seed laser and 1st stage amplifier, it features low IL and high isolator, also be flexible for different working wavelength, say 980nm, 1030nm, 1040nm etc.
Also can be designed according different fiber, say Hi1060，PM980 Panda，10(core)/125(clad)/250(coating) etc.

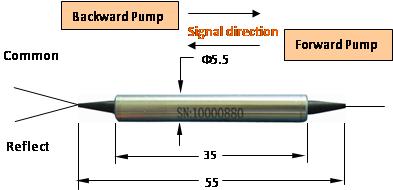

Product Name: Isolator +WDM HYbrid Device(IWDM)
The IWDM is built based on isolator and thin film filter to fullfill hybrid isolator+WDM function in one single compact package, it includes two different confugration due to pump direction, "forward pump" and "backward pump".

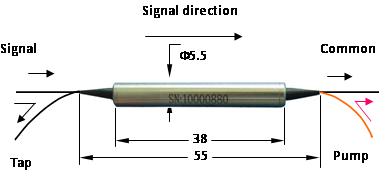

Product Name: Tap+Isolator+WDM Hybrid Device(TIWDM 9815/1415nm 2*2)
The Hybrid device combines 3-function: Tap, isolator and WDM into one compact package, it can be built as customer request, tap ratio and pump direction.
